Brand Name : Leuze
Model Number : HT49CI.UC/TS-TB
Certification : CE
Place of Origin : -
MOQ : 1
Price : USD$20/pc
Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram, D/P
Supply Ability : 500
Delivery Time : 1-2weeks
Packaging Details : Carton
Light source : LED, Infrared
Wavelength : 860 nm
LED group : Exempt group (in acc. with EN 62471)
Supply voltage UB : 20 ... 250 V, AC/DC
Power consumption (with AC) : 1.5 V·A
Switching element : Relay, NC
Switching frequency : 25 Hz
Readiness delay : 300 ms
Series: 49C
Operating principle: Scanning principle with background suppression
Operating range, white 90%: 0.005 - 3 m
Operating range, gray 18%: 0.02 - 2 m
Operating range, black 6%: 0.05 - 1.5 m
Operating range limit: 0.005 - 3 m
Light source: LED, Infrared
Switching frequency: 150 Hz
Response time: 3.3 ms
Protective circuit: Interference blanking, Transient protection
Supply voltage: 20 - 250 V, AC/DC
Number of digital switching outputs: 2
Output 1 switching element: Relay, NC
Output 1 switching principle: Light/dark reversible
Output 2 switching element: Relay, NO
Output 2 switching principle: Light/dark reversible
Type of connection: Terminal
Number of pins: 5-pin
Design: Cubic
Type of fastening: Through-hole mounting, Via optional mounting device
Operational controls: Multiturn potentiometer, Teach button
Degree of protection: IP 67, IP 69K
Diffuse sensor with background suppression, red light and infrared design, clamp connection.
Large scanning range
High function reserve
Exact object detection, independent of surface structure (minimal black-white error)
![]() |

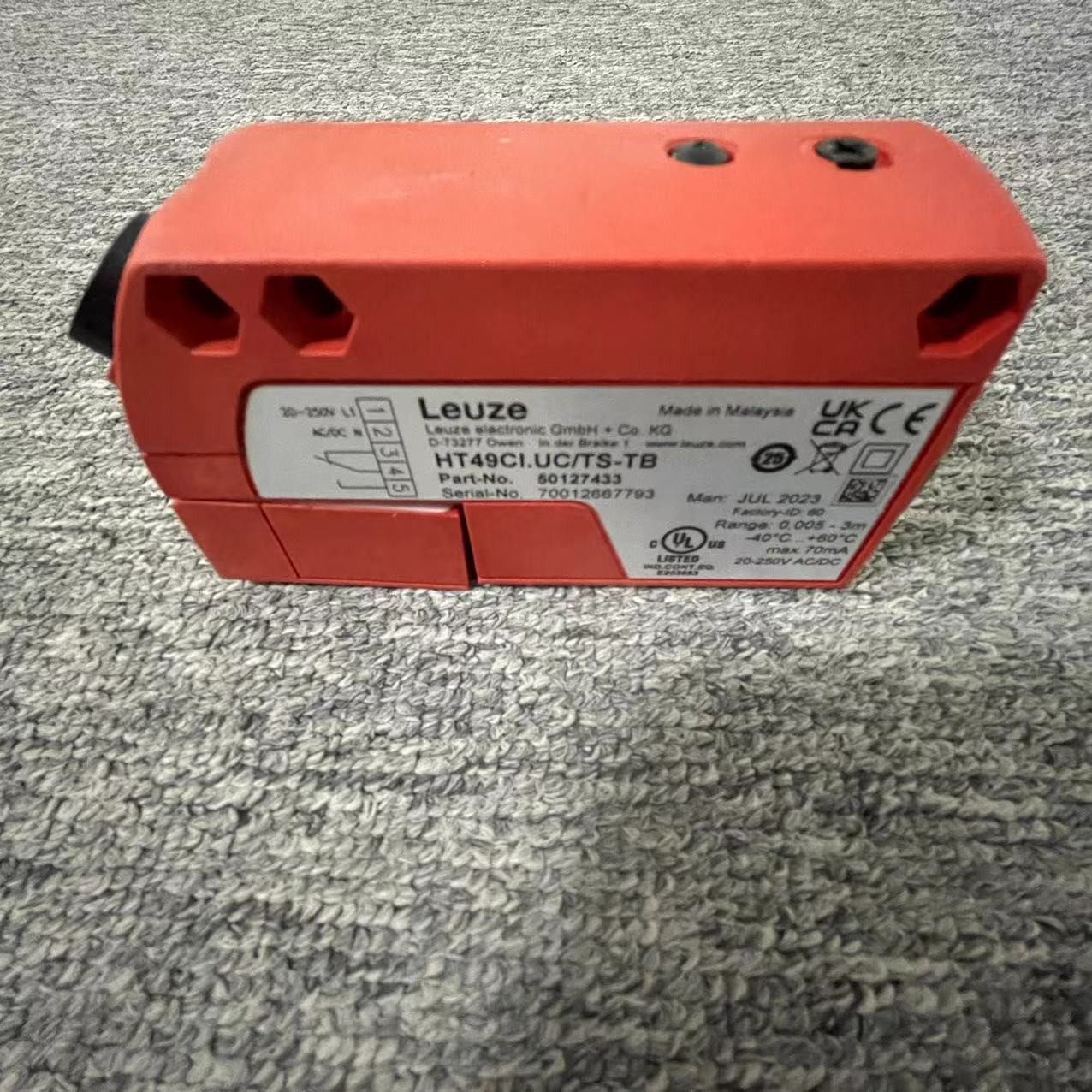

Original Leuze HT49CI.UC/TS-TB 50127433 Photoelectric Sensor have stock Images |
