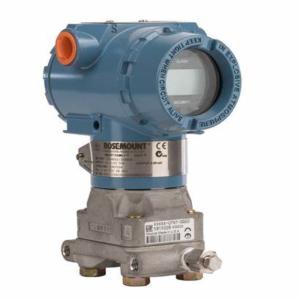

Original Rosemount 3051TG Pressure Transmitter 3051CD Differential Pressure Transmitter

Confidently measure pressure and level with the Rosemount 3051 In-Line Pressure Transmitter. Engineered for 10-year installed stability and 0.04% of span accuracy, this industry-leading pressure transmitter provides you with the information necessary to run, control and monitor processes. Available with a graphical, back-lit display, Bluetooth® connectivity, and enhanced software capabilities designed to access the data you need faster than ever before.

Warranty

Up to 5-year limited warranty

Rangedown

Up to 150:1

Communication Protocol

4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART®

Measurement Range

Up to 20000 psig (1378,95 bar) gage
Up to 20000 psia (1378,95 bar) absolute

Process Wetted Material

316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400

Diagnostics

Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics

Certifications/Approvals

SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications

Wireless Update Rate

1 sec. to 60 min., user selectable

Power Module Life

Up to 10-year life, field replaceable (order separately)

Wireless Range

Internal antenna (225 m)

Rangedown	1
Supply Ability	100 Set/Sets per Month
interface size	m20*1.5(mm)

Features

• In-line gage and absolute pressure measurements support up to 20,000 psi (1378,95 bar) for pressure or level solutions
• Application specific configuration allows you to transform your pressure transmitter into a level transmitter with volume calculations
• Complete pressure or level assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
• 10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
• Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool
• The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions
• Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime
• Quick service buttons offer built-in configuration buttons for streamlined commissioning
• SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
• Wireless Features
  • WirelessHART® technology is secure and cost-effective and delivers >99% data reliability
  • SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
  • Easy installation enables quick instrumentation of measurement points without the cost of wiring
