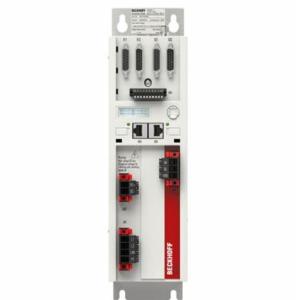

2-Channel Digital Compact Servo Drives BECKHOFF AX5206 Max. 875 V DC DC Link Voltage

Brand Name : BECKHOFF

Model Number : AX5206-0000-0200

Certification : CE

Place of Origin : china

MOQ : 1

Price : USD$1680

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 500pc

Delivery Time : in stock

Packaging Details : carton

Function : servo drive

Channels : 2

Rated supply voltage : 3 x 100…480 V AC ±10 %

DC link voltage : max. 875 V DC

Contact Now

Technical data AX5206
Function servo drive
Channels 2
Rated supply voltage 3 x 100…480 V AC ±10 %
DC link voltage max. 875 V DC
Rated output current (channel) 6 A
Peak output current (channel) 13 A
Feedback SinCos 1 Vpp , resolver , EnDat 2.1 , Hiperface , BiSS B , OCT
System bus EtherCAT
Drive profile SERCOS™ profile for servo drives according to IEC 61800-7-204 (SoE)
Ambient temperature (operation) 0…+50 °C (see documentation)
Approvals/markings CE, cULus, EAC
To top
Housing data AX51xx | AX52xx
Protection rating IP20
To top
Dimensions AX5206
Height without connectors 274 mm
Depth without connectors 232 mm
Width 92 mm
