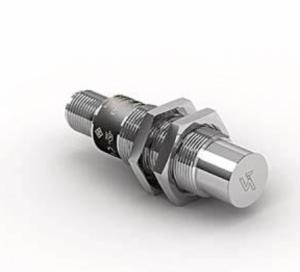

Name: WENGLOR IW120SE65UA3 Inductive Sensor With FullMetal Housing
Brand: WENGLOR
Price: 100 USD

Brand Name : WENGLOR

Model Number : IW120SE65UA3

Certification : CE

Place of Origin : china

MOQ : 1

Price : USD$100

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500pcs

Delivery Time : 6-8weeks

Packaging Details : carton

Switching Distance : 10 mm

Mounting : Non-flush

Switching Hysteresis : < 15 %

Supply Voltage : 10 ... 30 V DC

Contact Now

Inductive Data
Switching Distance	10 mm
Correction Factors Stainless Steel V2A/CuZn/Al	0,94/0,35/0,31
Mounting	Non-flush
Mounting A/B/C/D in mm	18/52/36/16
Mounting A/B/C/D (V2A) in mm	18/52/36/12
Switching Hysteresis	< 15 %

Electrical Data
Supply Voltage	10 ... 30 V DC
Current Consumption (Ub = 24 V)	< 15 mA
Switching Frequency	400 Hz
Temperature Drift	< 10 %
Temperature Range	-25 ... 80 °C
Switching Output Voltage Drop	< 2.5 V
Switching Output/Switching Current	400 mA
Residual Current Switching Output	< 100 µA
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Overload Protection	yes
Protection Class	III

Mechanical Data
Housing Material	Stainless steel, V4A
Sensing face	Stainless steel, V4A
Full Encapsulation	yes
Degree of Protection	IP68/IP69K
Connection	M12 × 1; 4-pin
Pressure Resistance Sensor Area	45 bar
Ex II 3G Ex nA IIC T5 Gc X	yes
Ex II 3D Ex tc IIIC T90°C Dc IP6X X	yes
Weight	70 g

Safety-relevant Data
MTTFd (EN ISO 13849-1)	2,206.08 a
