Dwyer DM-2000 Industrial Pressure Gauge LCD Differential Multimeter Series Including Models DM-2001/2002/2003

Name: Dwyer DM2000 Industrial Pressure Gauge LCD Differential Multimeter Series Including Models DM200120022003
Brand: dwyer
Price: 115 USD

China Dwyer DM-2000 Industrial Pressure Gauge LCD Differential Multimeter Series Including Models DM-2001/2002/2003 factory

Brand Name : dwyer

Model Number : DM-2000

Certification : -

Place of Origin : USA

MOQ : 1

Price : USD115/PC

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000

Delivery Time : 2weeks

Packaging Details : Original

Application : Industrial

Material : Abs

Operating Temperature : -20℃~+80℃

Parameters Measured : Pressure

Contact Now

Product Overview

Accuracy Detail± 1% FS, ± 30 Pa model ± 4% FS at 70°F
ApplicationsFilter Monitoring, HVAC
Display Note3.5 digit LCD, 0.7" H
Display TypeLCD
Electrical ConnectionScrew Terminal
Electrical Output4 to 20 mA
Long Term Stability± 1% FS/year
Loop Resistance0 to 1250 Ω max
Materials, WettedConsult Factory
Media CompatibilityAir, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases
Mounting NoteVertical
Number of Digits3.5
Number of Wires2
Operating Temperature, Max48.9 °C
Operating Temperature, Min-6.67 °C
Output SignalCurrent
Power Consumptionmax 38 mA
Measurement Pressure TypeDifferential
Process Connection Size1/8 in
Process Connection TypeBarbed Fitting
Proof PressureUp to 10 psi
Span AdjustmentPush Button
Supply Power TypeDC
Supply Voltage10 to 35 Vdc
Thermal Effects± 0.099% FS/°C

Product Tags:

LCD Differential Pressure Multimeter

DM-2000 LCD Differential Pressure Gauge

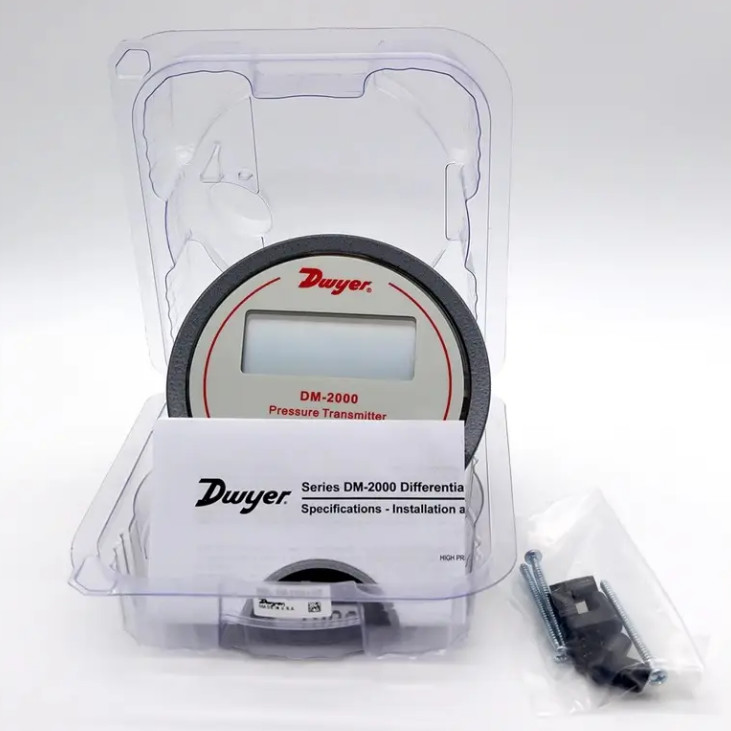

Dwyer DM-2000 Industrial Pressure Gauge LCD Differential Multimeter Series Including Models DM-2001/2002/2003 Images
