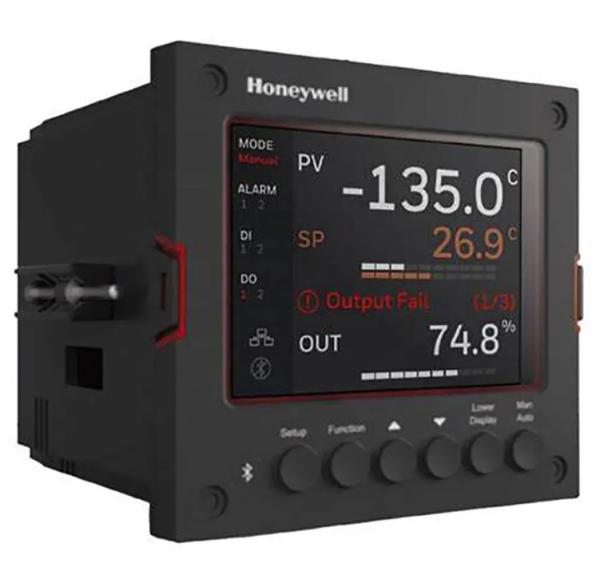

NEW ORIGINAL STOCK DC2800 DIN Universal Digital Controller DC2800-CE-1S0-100-000-00-0

HONEYWELL UDC 2800 LIMIT CONTROLLER TECHNICAL SPECIFICATION The UDC2800 Universal Digital Limit Controller packs new powerful features in the popular 1/4 DIN size. OVERVIEW Unmatched application power includes a Bluetooth Configuration interface, and an universal analog input. When these components are combined with Accutune IIITM tuning with fuzzy logic overshoot suppression, the result is price/performance leadership. Application flexibility is assured by the universal analog input, universal AC power supply, digital input, a maximum of one analog input and four digital outputs, RS485 Modbus RTU or Ethernet 10/100M Base-T TCP/IP communication protocols, simple configuration plus total f ield upgrade capability for any optional feature. ANALOG INPUT The UDC2800 has one analog input with a typical accuracy of ±0.15% of full-scale input and a typical resolution of 16 bits. Both analog inputs are sampled ten times per second (every 100 ms). The first, or Process Variable input, can be one of the various thermocouple, RTD, or linear actuations. Linear actuations have thermocouple, RTD characterization capability as a standard feature. Linear actuations also have square root capability. All actuations and characterizations are keyboard configurable. Cold junction compensation is provided for thermocouple type inputs. Upscale, downscale or failsafe sensor break protection is keyboard configurable. A configurable digital filter of 0 to 120 seconds provides input signal damping. Thermocouple Health - In addition to the standard configurable upscale, downscale or failsafe output burnout selections, the condition of the thermocouple can be monitored to determine if it is good, failing or in danger of imminent failure UDC2800 Universal Digital Limit Controller FEATURES AND BENEFITS • 1 Universal Analog Input • 0.15% Accuracy • Fast scanning rate (100ms) • Up to 4 Output Types • 1 Digital Input • Ethernet and Modbus communication • Bluetooth configuration on mobile device • NEMA4X and IP66 front face protection • ¼ DIN Size • Jumper free configuration • Bright displays in English, make the operator interface easy to read, understand, and operate.

DC2800 DIN Universal Digital Controller

NEW ORIGINAL STOCK DC2800

NEW ORIGINAL STOCK DC2800 DIN Universal Digital Controller DC2800-CE-1S0-100-000-00-0 Images
