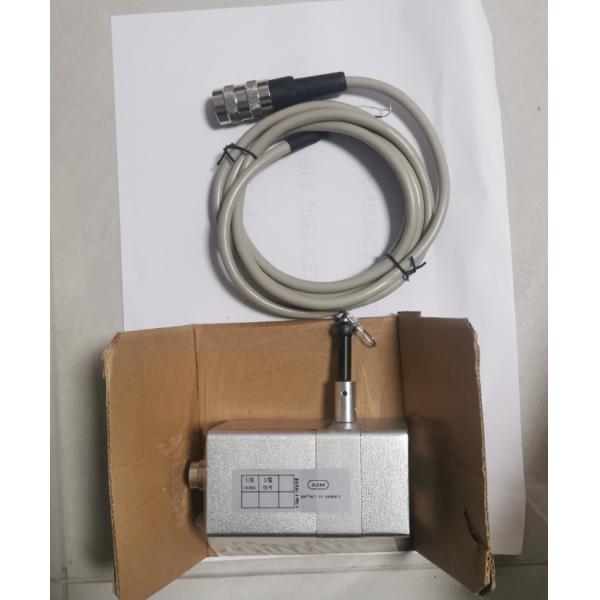

Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price

Brand Name : ASM

Model Number : WS10-250-420A-L10-SB0-M12

Certification : -

Place of Origin : Germany

MOQ : 1

Price : USD120/PC

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000

Delivery Time : 2weeks

Packaging Details : Original

WARRANY : 1 YEAR

Temperature range : -20 ... +85 °C

Weight : approx. 550 g

Connection : Connector M12, 8 pin

Contact Now

WS10 - Cable Extension Position Sensor Version with Analog output, SSI output Specifications Order options Measurement range 100 / 125 / 375 / 500 / 750 / 1000 / 1250 mm 100 / 125 / 375 / 500 / 750 / 1000 / 1250 Resolution Analog: quasi infinite Output Potentiometer 1 kΩ Voltage 0 ... 10 V Current 4 ... 20 mA, 2 wire Current 4 ... 20 mA, 3 wire Current output, programmable Voltage output, programmable Signal conditioner SSI 12 bit Signal conditioner SSI 14 bit Signal conditioner SSI 16 bit R1K 10V 420A 420T PMUI PMUV ADSI ADSI14 ADSI16 Linearity ±0.10% f.s. (standard) ±0.05% f.s. (optional) L10 L05 Sensing device Precision potentiometer Material Aluminum measuring cable: stainless steel Protection class IP65 (with mating connector only) Cable fixing M4 cable fixing Cable clip M4 SB0 Connection Connector M12, 8 pin M12 Temperature range -20 ... +85 °C Weight approx. 550 g EMC DIN EN 61326-1:2013 Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price
